Расширение от ProcessInstance EditRuntimeFragment

Вопросы и проблемы
#1

jmix 1.6.2
понадобилось расшириться от ProcessInstanceEditRuntimeFragment

@UiController("bpm_ExtProcessInstanceEditRuntimeFragment")
@UiDescriptor("ext-process-instance-edit-runtime-fragment.xml")
public class ExtProcessInstanceEditRuntimeFragment extends ProcessInstanceEditRuntimeFragment {
    @Autowired
    private AccessManager accessManager;
    @Autowired
    private Metadata metadata;

    @Named("tasksTable.reassignTask")
    private BaseAction tasksTableReassignTask;

    @Subscribe
    public void onAfterInit(final AfterInitEvent event) {
        initButtonsSecurity();
    }

    private void initButtonsSecurity() {
        UiSecurityUtils.setActionEnabled(tasksTableReassignTask, accessManager, metadata.getClass(TaskData.class), CrudEntityContext::isUpdatePermitted);
    }
}

соответствующий xml

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<fragment xmlns="http://jmix.io/schema/ui/fragment"
          messagesGroup="io.jmix.bpmui.screen.processinstance"
          extends="io/jmix/bpmui/screen/processinstance/process-instance-edit-runtime-fragment.xml">
    <layout/>
</fragment>

но вкладки не перевелись

#4

Добрый день

Если еще актуально)

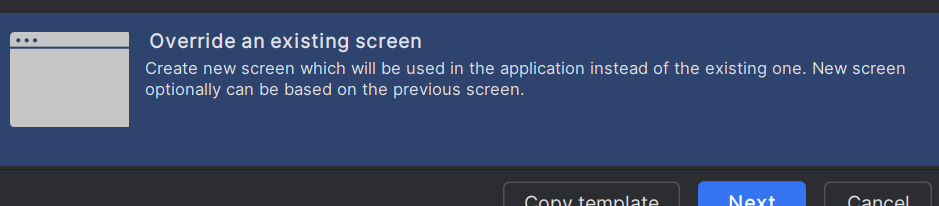

  1. Мы оверрайдим скрины

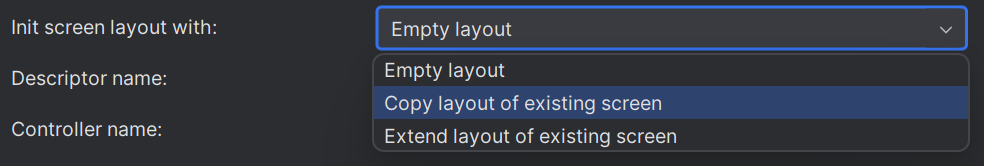

  2. Проще всего скопировать layout
  3. Ошибка в том что мы оверрайдим только фрагмент, в этом случае из jar нашего аддона подтягиваются только тот фрагмент который есть там. Потому мы должны заоверрайдить 2 экрана

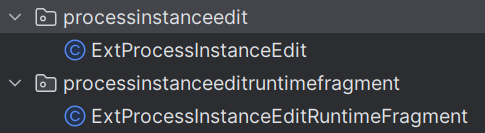

  • ProcessInstanceEdit
  • ProcessInstanceEditRuntineFragment
    В этом случае у нас появляется возможность указывать какой айдишник у нового (переорпделенного) фрагмента, даже если он не изменился мы можем его переопределить

  1. Сам ExtProcessInstanceEdit

      <window xmlns="http://jmix.io/schema/ui/window"
        caption="msg://io.jmix.bpmui.screen.processinstance/processInstanceEdit.caption">
    <data>
        <instance id="processInstanceDataDc"
                  class="io.jmix.bpm.entity.ProcessInstanceData">
            <fetchPlan extends="_local"/>
            <loader/>
        </instance>
    </data>
    <facets>
        <dataLoadCoordinator auto="true"/>
    </facets>
    <dialogMode height="600"
                width="800"/>
    <layout expand="relatedEntitiesTabSheet"
            spacing="true">
        <hbox spacing="true" id="upperPanel">
            <groupBox id="processInstanceInfoGroupBox"
                      caption="msg://io.jmix.bpmui.screen.processinstance/processInstanceInfo"
                      orientation="horizontal"
                      collapsable="true"
                      spacing="true">
                <form id="processInstanceForm" dataContainer="processInstanceDataDc" width="450px" editable="false">
                    <column width="100%">
                        <textField property="id"/>
                        <dateField property="startTime"/>
                        <dateField id="endTimeField" property="endTime"/>
                        <textField property="businessKey"/>
                        <hbox spacing="true" expand="processDefinitionField"
                              caption="msg://io.jmix.bpmui.screen.processinstance/processDefinition">
                            <textField id="processDefinitionField" editable="false"/>
                            <button id="openProcessDefinitionEditorBtn" icon="ENTITYPICKER_OPEN"
                                    description="msg://io.jmix.bpmui.screen.processinstance/openProcessDefinition"/>
                        </hbox>
                    </column>
                </form>
                <vbox id="processActionsPanel"
                      width="200px"
                      spacing="true">
                    <button id="migrateBtn"
                            description="msg://io.jmix.bpmui.screen.processinstance/migrate"
                            caption="msg://io.jmix.bpmui.screen.processinstance/migrate"
                            icon="font-icon:FORWARD"
                            width="100%"/>
                    <button id="suspendBtn"
                            description="msg://io.jmix.bpmui.screen.processinstance/suspend"
                            caption="msg://io.jmix.bpmui.screen.processinstance/suspend"
                            icon="PAUSE"
                            width="100%"/>
                    <button id="activateBtn"
                            description="msg://io.jmix.bpmui.screen.processinstance/activate"
                            caption="msg://io.jmix.bpmui.screen.processinstance/activate"
                            icon="PLAY"
                            width="100%"/>
                    <button id="deleteBtn"
                            description="msg://io.jmix.bpmui.screen.processinstance/delete"
                            caption="msg://io.jmix.bpmui.screen.processinstance/delete"
                            icon="REMOVE"
                            width="100%"/>
                </vbox>
            </groupBox>
        </hbox>
        <tabSheet id="relatedEntitiesTabSheet">
            <tab id="runtimeTab" caption="msg://io.jmix.bpmui.screen.processinstance/runtimeTabCaption"
                 margin="true;false;false;false;">
                <label value="ASDSADSADSASA"/>
                <fragment id="processInstanceEditRuntimeFragment" screen="bpm_ProcessInstanceEditRuntimeFragment"/>
            </tab>
            <tab id="historyTab" caption="msg://io.jmix.bpmui.screen.processinstance/historyTabCaption"
                 margin="true;false;false;false;">
                <fragment id="processInstanceEditHistoryFragment" screen="bpm_ProcessInstanceEditHistoryFragment"/>
            </tab>
            <tab id="diagramTab" caption="msg://io.jmix.bpmui.screen.processinstance/diagramTabCaption"
                 margin="true;false;false;false;">
                <fragment id="bpmnDiagramViewerFragment" screen="bpm_BpmnDiagramViewerFragment"/>
            </tab>
        </tabSheet>
        <hbox id="windowActions"
              spacing="true">
            <button id="windowClose"
                    action="windowClose"
                    caption="msg:///actions.Close"
                    icon="EDITOR_OK"/>
        </hbox>
    </layout>
</window>

  2. также для удобства при переопределении экарана копируем все элементы и можем делать что нам надо

    <fragment xmlns="http://jmix.io/schema/ui/fragment">
<data>
    <collection id="variablesDc"
                class="io.jmix.bpm.entity.VariableInstanceData"/>
    <collection id="tasksDc"
                class="io.jmix.bpm.entity.TaskData"/>
    <collection id="executionsDc"
                class="io.jmix.bpm.entity.ExecutionData"/>
    <collection id="jobsDc"
                class="io.jmix.bpm.entity.JobData"/>
</data>
<layout width="100%" height="100%">
    <label value="OVERRIDED"/>
    <split width="100%" height="100%" pos="30" orientation="horizontal">
        <groupBox height="100%" caption="msg://io.jmix.bpmui.screen.processinstance/executionsTree"
                  width="100%" outerMargin="false;true;false;false;">
            <tree id="executionsTree" dataContainer="executionsDc" hierarchyProperty="parent"
                  captionProperty="description" width="100%" height="100%">
            </tree>
        </groupBox>
        <hbox width="100%" height="100%" margin="false;false;false;true;">
            <tabSheet id="tabsheet" height="100%">
                <tab id="variablesTab"
                     caption="msg://io.jmix.bpmui.screen.processinstance/variablesTabCaption" spacing="true"
                     margin="true;false;false;false;">
                    <table id="variablesTable"
                           dataContainer="variablesDc"
                           height="100%"
                           width="100%">
                        <actions>
                            <action id="create"
                                    type="create"/>
                            <action id="edit"
                                    type="edit"/>
                            <action id="remove" type="remove"/>
                        </actions>
                        <columns>
                            <column id="name"/>
                            <column id="typeName"/>
                            <column id="value"/>
                            <column id="scope"/>
                            <column id="executionId" collapsed="true"/>
                        </columns>
                        <buttonsPanel>
                            <button id="variableCreateBtn"
                                    action="variablesTable.create"/>
                            <button id="variableEditBtn"
                                    action="variablesTable.edit"/>
                            <button id="variableRemoveBtn"
                                    action="variablesTable.remove"/>
                        </buttonsPanel>
                    </table>
                </tab>
                <tab id="tasksTab" caption="msg://io.jmix.bpmui.screen.processinstance/tasksTabCaption"
                     spacing="true" margin="true;false;false;false;">
                    <table id="tasksTable" width="100%" height="100%" dataContainer="tasksDc">
                        <actions>
                            <action id="reassignTask"
                                    caption="msg://io.jmix.bpmui.screen.processinstance/reassignTask"
                                    icon="font-icon:EXCHANGE"
                                    trackSelection="true"/>
                        </actions>
                        <columns>
                            <column id="id"/>
                            <column id="name"/>
                            <column id="taskDefinitionKey"/>
                            <column id="assignee"/>
                            <column id="createTime"/>
                            <column id="claimTime"/>
                            <column id="dueDate"/>
                        </columns>
                        <buttonsPanel>
                            <button action="tasksTable.reassignTask"/>
                        </buttonsPanel>
                    </table>
                </tab>
                <tab id="jobsTab" caption="msg://io.jmix.bpmui.screen.processinstance/failedJobsTabCaption"
                     spacing="true"
                     margin="true;false;false;false;">
                    <dataGrid id="jobsTable" width="100%" height="100%" dataContainer="jobsDc">
                        <columns>
                            <column property="id"/>
                            <column property="createTime"/>
                            <column property="retries"/>
                            <column property="exceptionMessage"/>
                        </columns>
                        <actions>
                            <action id="edit" type="edit"/>
                        </actions>
                        <buttonsPanel>
                            <button action="jobsTable.edit"/>
                        </buttonsPanel>
                    </dataGrid>
                </tab>
            </tabSheet>
        </hbox>
    </split>
</layout>
</fragment>

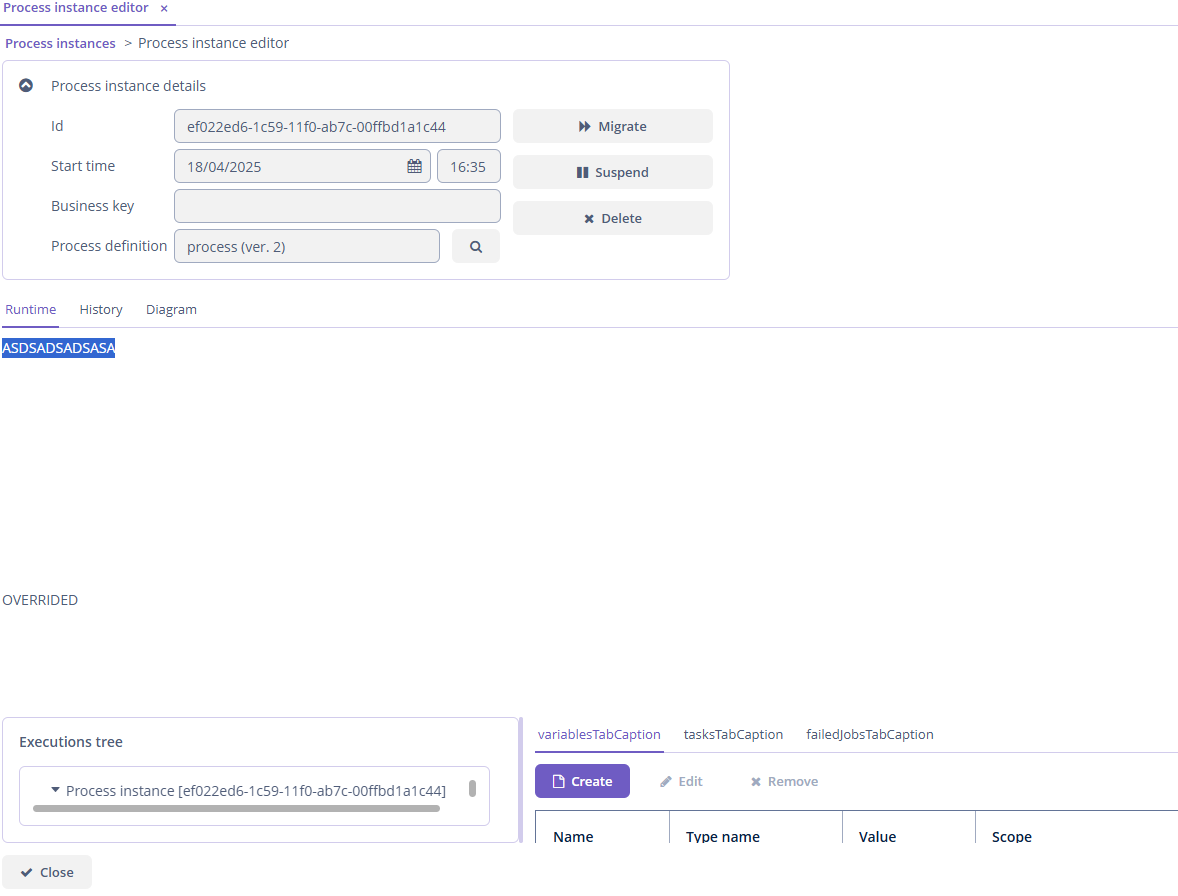

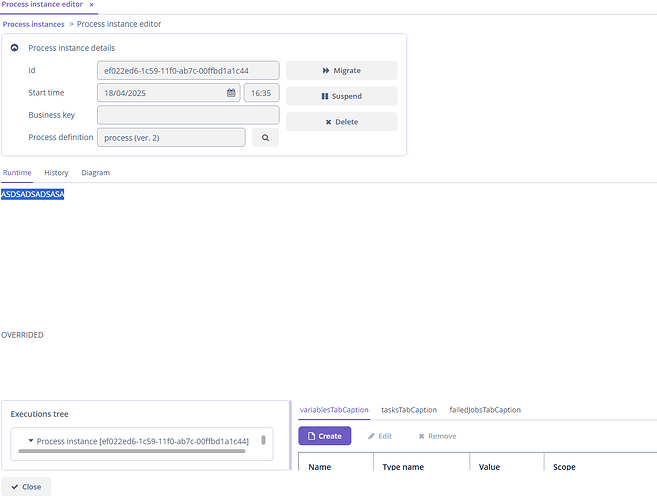

По итогу получаем


Все переопределено

С уважением,
Дмитрий
